11.8IN Stand Type Hot Melt Glue Coating Machine Industrial Glue Applicator for Leather Shoes Stationery 220V

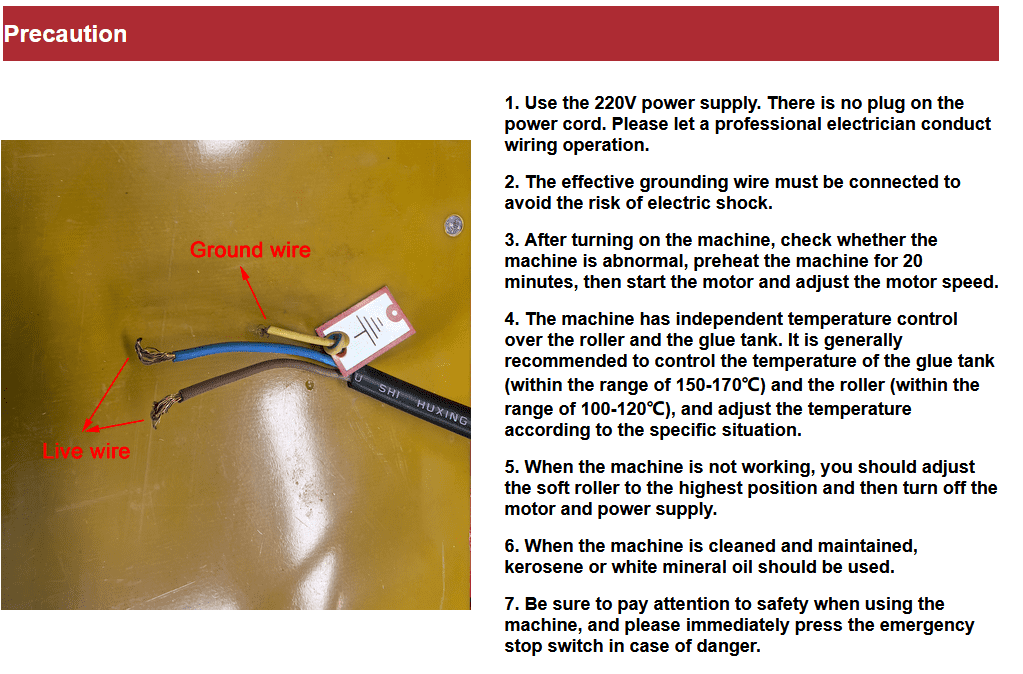

Product Overview: <br>The machine is suitable for adhesive coating and bonding of flat surfaces of shoes, leather goods, stationery, leather luggage, sports equipment, cardboard boxes and other items with a thickness of 0.5mm or above. The soft roller can move up and down, is adjustable in pressure, and can conduct adhesive coating of uneven, soft or hard materials or materials with low front sides and high rear sides. The temperature of the adhesive tank can be adjusted according to the characteristics of the hot melt adhesive, and can effectively prevent carbonization of the hot melt adhesive. The machine adopts speed regulation control, and the adhesive coating speed can be adjusted as needed. <br> <br>Product Parameters: <br>Power Supply: 220V <br>Electric Heating Power: 3.3KW <br>Motor Power: 180W <br>Adhesive Coating Width: 11.8in/30cm <br>Product dimensions: 19.88x16.93x36.22in/50.5x43x92cm <br>Net weight: 139LB/63KG <br> <br>Precaution: <br>1. Use the 220V power supply. There is no plug on the power cord. Please let a professional electrician conduct wiring operation. <br>2. The effective grounding wire must be connected to avoid the risk of electric shock. <br>3. After turning on the machine, check whether the machine is abnormal, preheat the machine for 20 minutes, then start the motor and adjust the motor speed. <br>4. The machine has independent temperature control over the roller and the glue tank. It is generally recommended to control the temperature of the glue tank (within the range of 150-170℃) and the roller (within the range of 100-120℃), and adjust the temperature according to the specific situation. <br>5. When the machine is not working, you should adjust the soft roller to the highest position and then turn off the motor and power supply. <br>6. When the machine is cleaned and maintained, kerosene or white mineral oil should be used. <br>7. Be sure to pay attention to safety when using the machine, and please immediately press the emergency stop switch in case of danger. <br> <br>Operation Method: <br>1. Place the machine on the flat ground, and ensure there is no shaking. <br>2. Connect the power supply, turn on the power switch, set the temperature of the adhesive tank (generally at 150-170˚C) and the temperature of the large shaft (knurled shaft) (generally at 100-120˚C), and adjust other settings as needed. <br>3. Open the cover plate of the adhesive tank and put the hot melt adhesive into it. <br>4. When the temperature of the adhesive tank reaches 120˚C, press the motor start switch to enable the motor to rotate, and simultaneously reduce the temperature of the large shaft to be within the range of 60˚C and 100˚C. <br>5. Adjust the thickness of the adhesive according to the materials and requirements. Rotate the adhesive adjusting handwheel clockwise to thicken the adhesive, and rotate the adhesive adjusting handwheel counterclockwise to thin the adhesive. <br>6. Adjust the gap between the soft roller and the large shaft (knurled shaft) according to the thickness of the material to be glued. Generally, it is appropriate for the material to automatically pass through the gap when the material is placed on the large shaft (knurled shaft). <br>7. After everything is adjusted to be normal, mass production can be conducted. <br>8. In case of emergency, press the inching switch, and the motor will automatically rotate reversely, and the material can automatically exit. <br> <br>Item Included (120127): <br>1 x Stand Type Hot Cementing Machine 220V

• ‌11.8IN Hot Melt Glue Coating Machine: Delivers strong adhesion and high bonding strength for 0.5mm+ flat materials, enabling quick, firm gluing of shoes, leather goods, stationery and cardboard boxes.
• Adjustable Soft Rubber Roller: Enlarged roller moves up and down with adjustable pressure, adapting to uneven, soft or hard materials for uniform, sufficient gluing across diverse applications.
• Precision Temperature Control: Equipped with a digital temperature controller to avoid glue carbonization, fast heating design ensures rapid startup and stable performance for various hot melt adhesives.

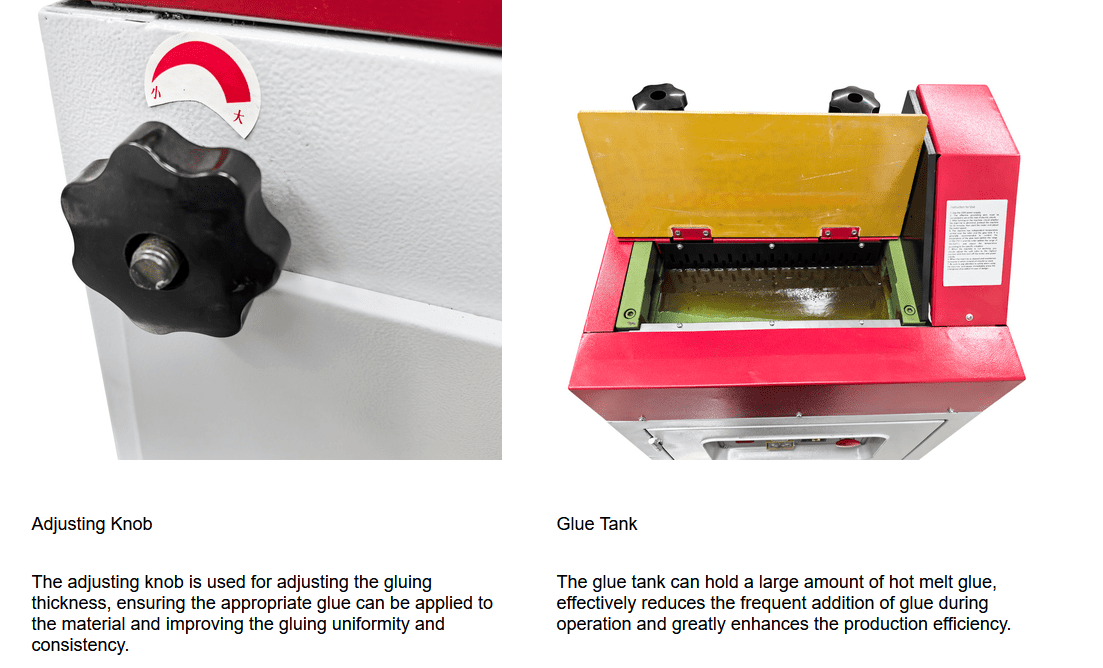

• Flexible Speed Regulation: Knob-controlled roller speed adapts to different materials and processes, paired with a large-capacity glue tank that reduces refueling frequency and boosts production efficiency.

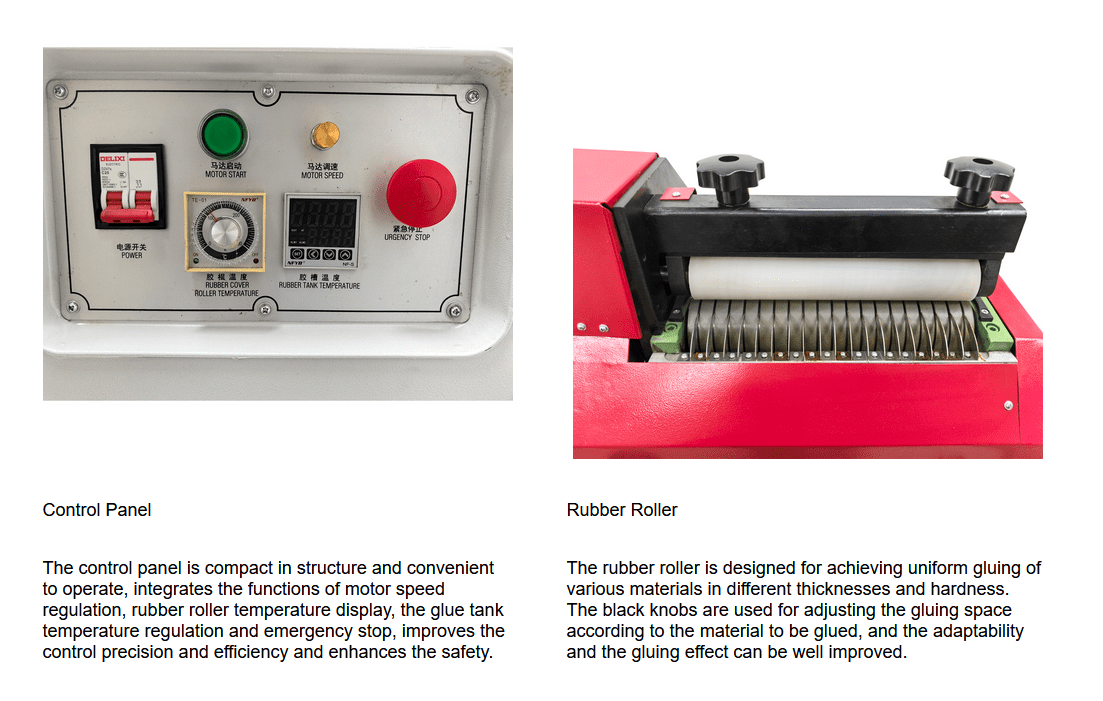

• Safe & User-Friendly Operation: Compact control panel integrates motor speed, temperature display and emergency stop functions; precision adjusting knobs optimize gluing space for consistent, high-quality results.
