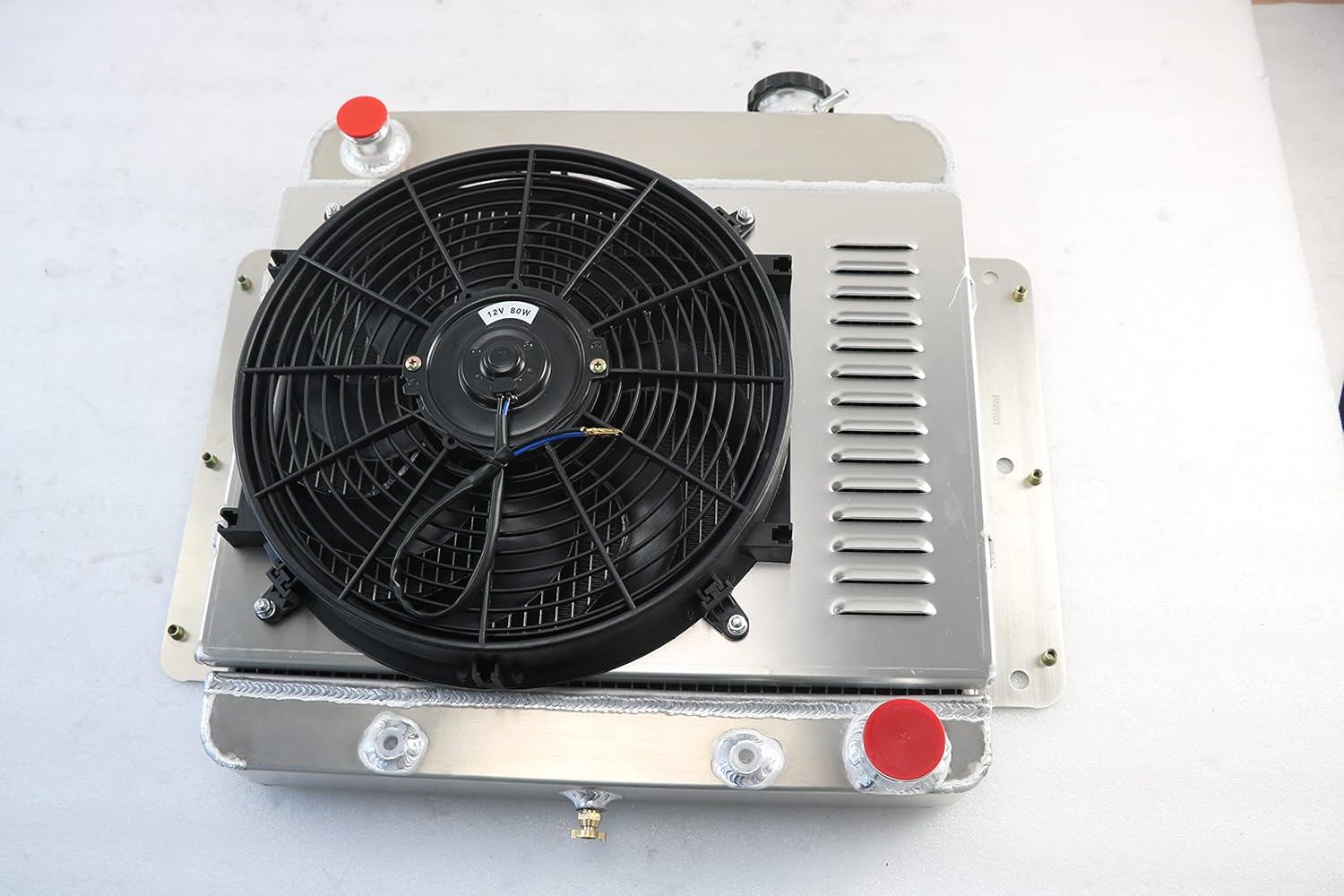

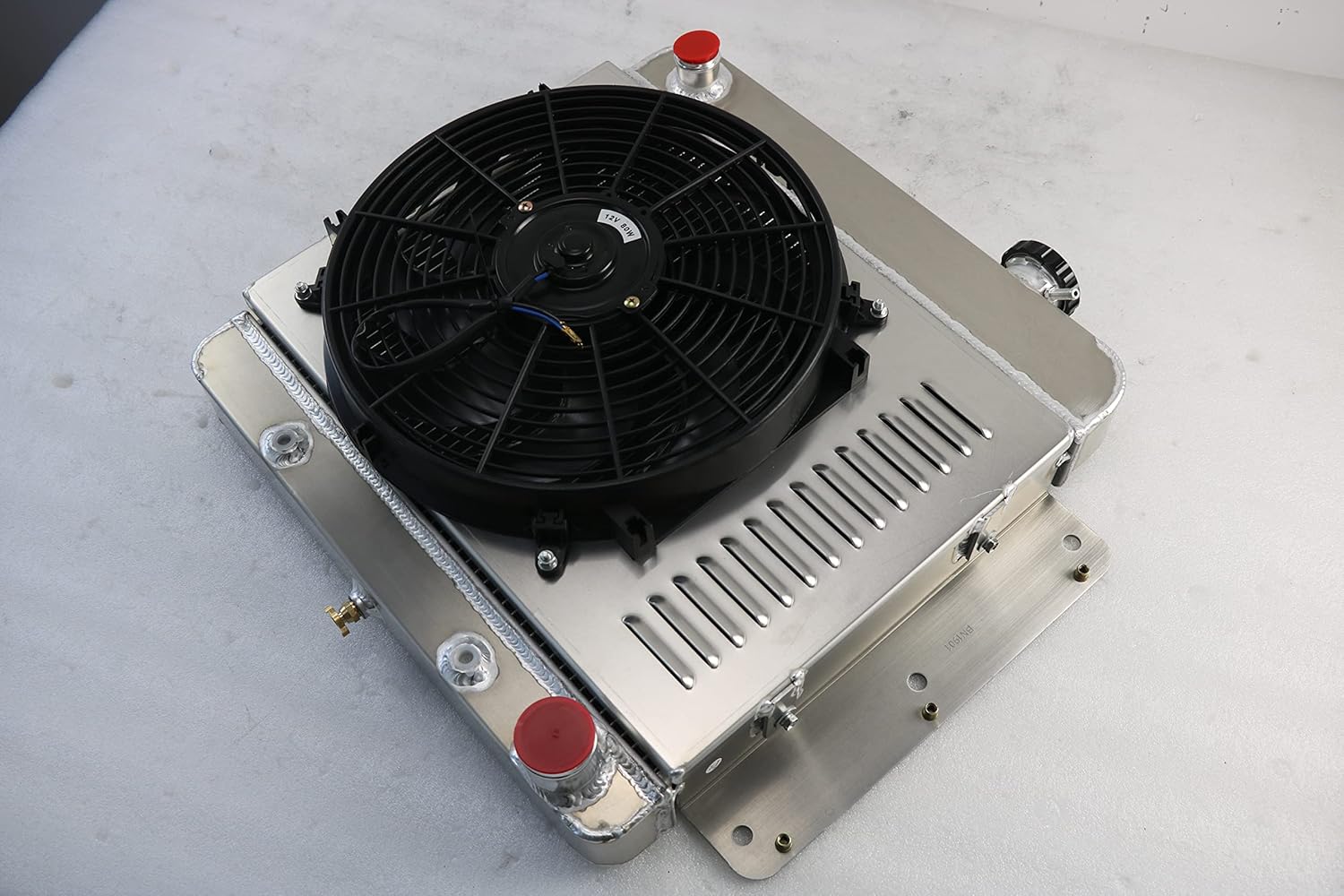

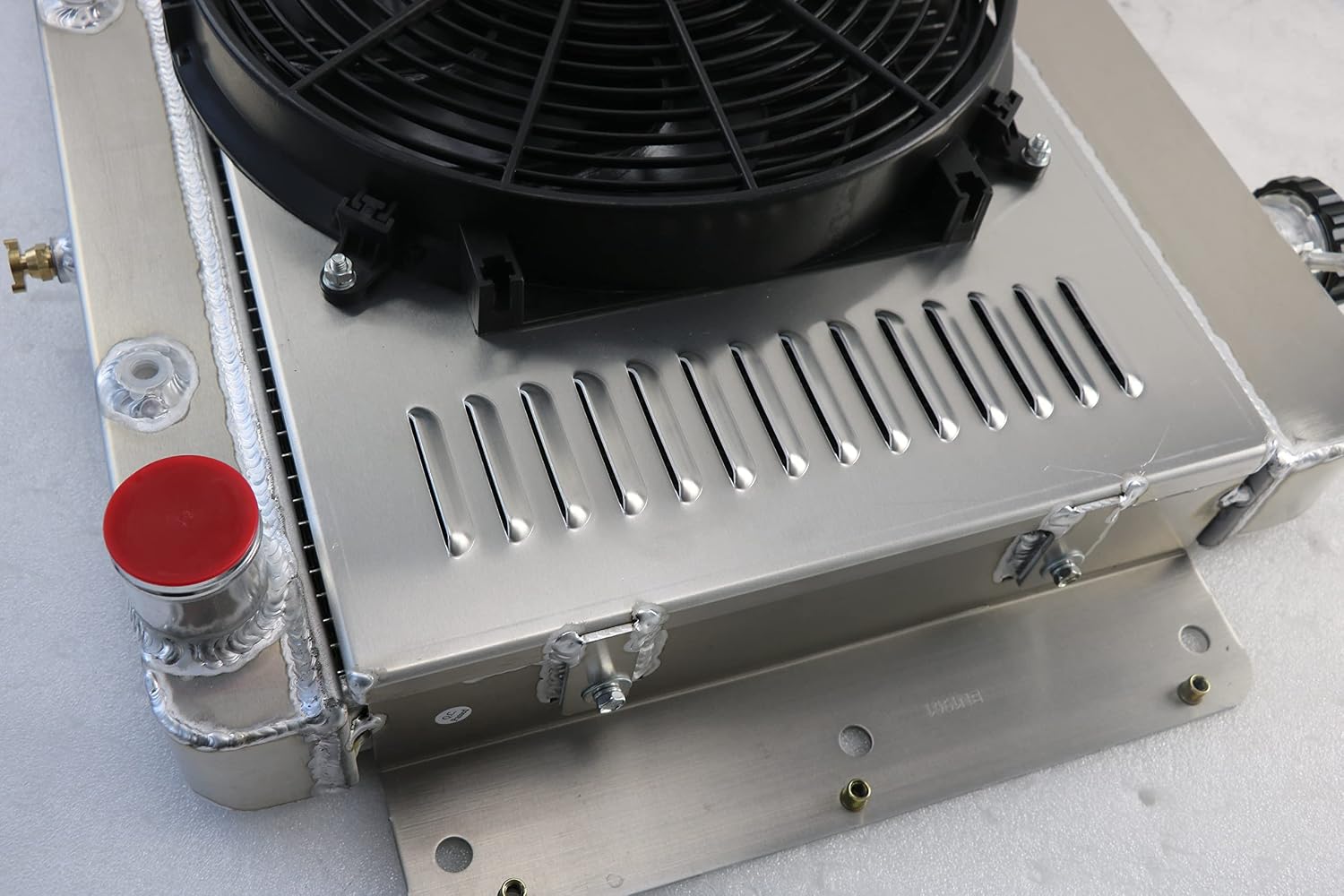

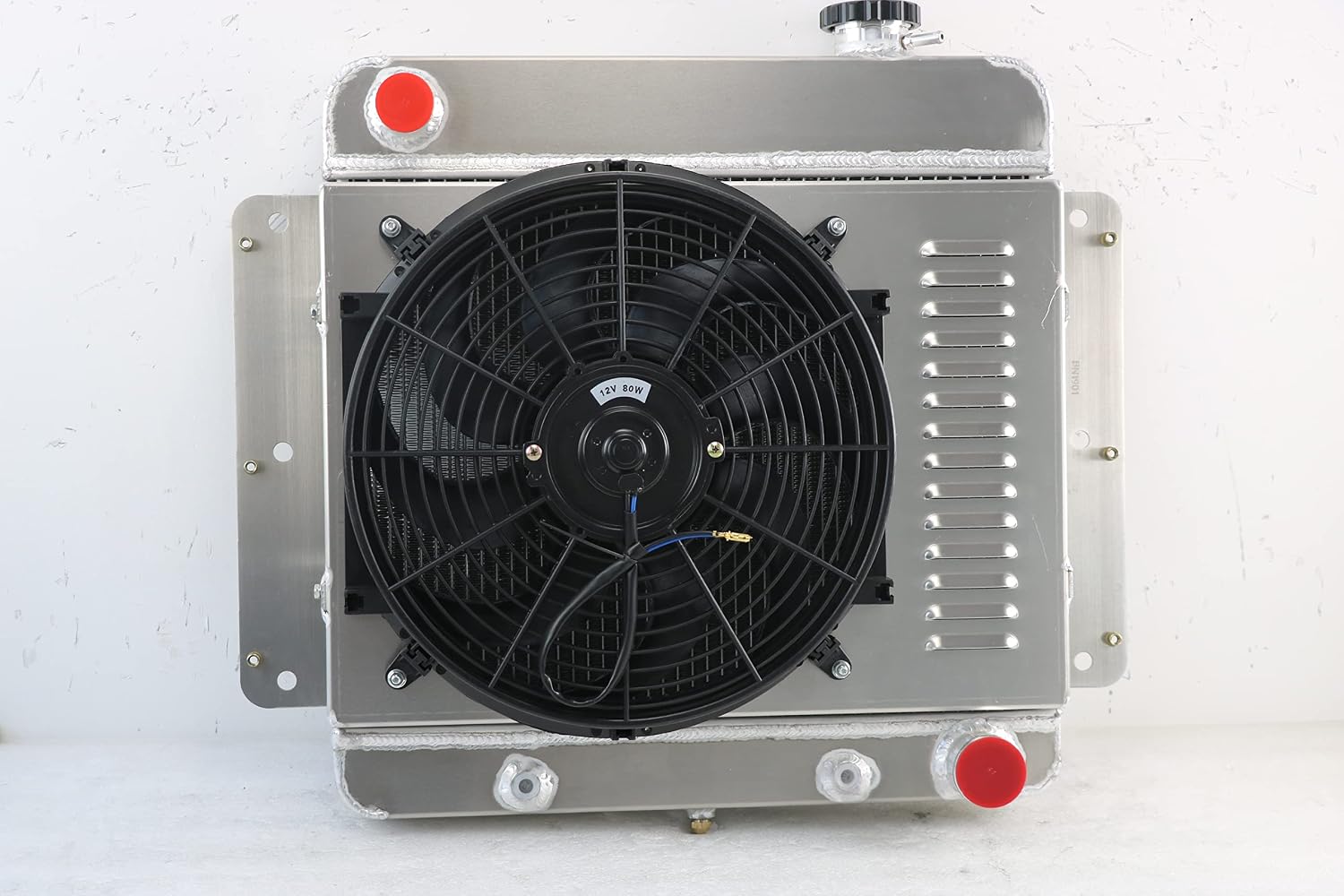

4 Row Aluminum Radiator for 1962-1967 Chevy II L4 L6 V8, Radiators with Electric Fan Shroud Thermostat Kit

Compatible with: 1962-1967 Chevy II 2.5L L4 1962-1967 Chevy II 2.5L L6 1964-1966 Chevy II 3.8L L6 1967 Chevy II 4.1L L6 1963-1967 Chevy II 4.6L V8 1965-1967 Chevy II 5.3L V8 1965-1966 Chevy II 5.4L V8 Radiator Details: Type: 4 Core Core Thickness: 2.44" Core/ Tank Material: All Aluminum Upgraded Cap: CNC Machined Filler Neck and Cap Upgraded Drain Plug: OEM Style Brass Petcock Drain With Transmission Cooler Delivery: Local Delivery Fitment Type: Direct Replacement Style: Downflow Performance: Up to 35%-45% Cooling Part Number: 255,SBR255,CC255,CU255,DPI255,EC255,MC255 FAN DETAILS: Maximum Fan CFM: 2200±200 FAN DIAMETER X HEIGHT X THICKNESS:14.05" X 14.05" X 2.5" Number of Blades: 8 blades (Plastic) Maximum Fan RPM/ Amp Draw :2,250 rpm / 12.70 amps Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe included. Probe typically threads into radiator, water outlet or manifold. Thermostat Relay Kit Instructions： RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Package Include: 1 X 4-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 1 X 14"Fan (Includes mounting kits) 1 X Thermostat Relay Kit COOLINGBEST Radiador: 1.Shuttered design T-5052 fan shroud to guaranteed airflow passes high efficiently. Make your engine bay perfect! 2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material. 3. Additional with thermostat,professional matching advice, consider for every detail and needed.

• Core size: 14.17"H x 18.42"W x 2.44"T; Overall size: 24.4"L x 21.25"W x 6.49"T; Inlet/ outlet: 1.38"/ 1.77"（Measurement standard: the direction of the core strip is high）
• Trans oil cooler specifications: φ32*215*G1/4（Z)
• T-5052 Aluminum Radiator is at least 35%-45% more efficient than stock ones
• Direct OE replacement with drop-in precise fitment and easy installation
• Precision-engineered by in-house team of automotive experts, heavy-duty design withstands harsh conditions to deliver enduring quality
